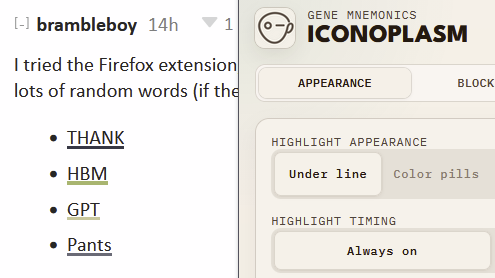

I tried the Firefox extension, but it's distracting to leave on because it triggers on lots of random words (if the capitalization matches), such as:
- THANK
- HBM
- GPT
- Pants
I had this annoyance as well, so I added 3 different ways to reduce it to the extension settings:
1. Picking "underline" highlight appearance switches it from color pills to less intrusive underlines.

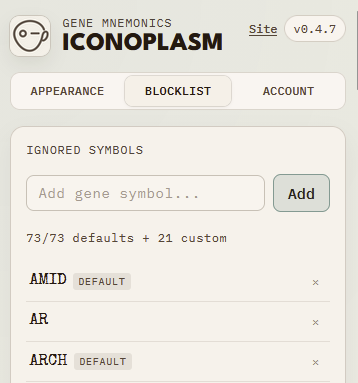

2. The "Blocklist" extension tab allows you to specify which words shouldn't be highlighted.
3. "On hover" option in the highlight timing switch makes it so that you don't see the word highlighting unless you're already hovering over it.

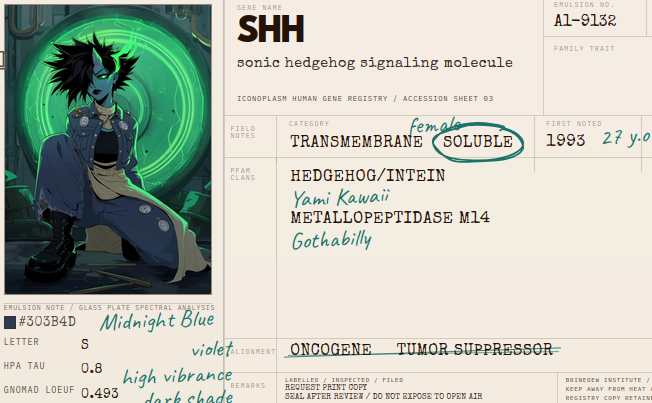

1After further review, I am inordinately disappointed to see that SHH is not, in fact, Sonic Hedgehog :)
We could probably fix that? On the website I already voted to change to what seemed to me like "the best image someone has come up with so far" because the hair reminded me of sonic <3
But it needs a lot of love I think? Especially the fashion needs work because that is neither gothabilly (where's polkadots or stripes? it needs a skirt, and should either be a midcalf pencil skirt or have petticoats) nor yami kawaii (could add pig tails and bangs, a bandaid over the bridge of the nose, and a stethoscope as a prop).
But her hair reminds one of sonic... and the color, age, and weight are solid. So it could be worse! <3
- BMP4, PRDM1, POU5F1, and NANOG have safeguarded the immortal germline from calamities for untold millions of years.
This is a really cool project and I'm excited to give it a try!
A point of clarification about germ cell biology: BMP4 is expressed by somatic cells and induces other cells to become germ cells, but it is not expressed by germ cells themselves. You could also add a few other important germ cell genes like NANOS3, TFAP2C, and SOX17 to that list.
You can also add OTX2 to the list of genes that bias cells away from the germline.
Back in 2013, Scott Alexander wrote in Extreme mnemonics:
It's 2026 and we now have LLMs and image generation models. Is the mnemonic worldbuilding project of this scale now remotely feasible?
Here's my attempt at the first piece of it: the characters.
What molecules should we map to the characters?
There already exist works of fiction that map human cell types to memorable characters.
Osmosis Jones asks: what if each cell was a cartoon character?
Cells at Work asks: what if each cell was an anime character?
Cells at Work Code Black asks: what if each cell was desperately fighting for survival in the body of an aging impotent smoker?
I found these worlds delightful and I do recommend them for students just getting into physiology.
However, the deeper I got into molecular biology, the more I started to find this "1 cell = 1 character" mapping mnemonically futile.
From single-cell sequencing experiments, we know that cell types are not rigid essentialist bins, but are more like attractors in the analog gene expression space. Individual cells routinely change their type-cluster membership during regular development and regeneration. A given cell could have one "type" today and another one tomorrow. You can't really ask How many cell types are there? - different cell databases categorize human cells into anywhere from 154 to 1715 cell types.
But you can ask How many protein-coding genes are there? totally fine. The answer, in humans, is around 19 thousand. Gene boundaries are a lot more digital and measurement-independent than cell type boundaries. So the natural mnemonic mapping is the one where cells are more like vehicles, cities, or pocket universes - inhabited by gene characters.
19 thousand is a lot of characters to memorize. But it will be roughly the same number of characters today, in 10 years, or in 1,000 years, all keeping the same names[1]. So it's worth starting to get familiar with them today.
Isomorphisms
To generate the visual descriptions of the characters, I needed to download gene data, and to come up with memorable isomorphisms.
Getting data for 19k genes was easy - I already had most of it from my previous project, Geneguessr. Bioinformatics datasets have useful per-gene metrics to work with, like protein mass, mutation tolerance, a one-paragraph verbal description, and clan membership.
Getting isomorphisms right was extremely difficult, and LLM suggestions didn't help much. After a few months of brainstorming and reshuffling, here is what I settled on:
Character sex → protein transmembrane status.
Male = transmembrane protein. Female = soluble protein.
LAIR1, male; LAIR2, female
Sex needs to be mapped to something that splits proteins into two roughly equal-sized categorical bins. I found transmembrane status very important to know when studying cell signalling pathways, so I'm happy to keep it prominent, even if the sex ratio is somewhat skewed.
73% of genes became female, 27% male.
Character weight → protein mass.
45 kg = 45 kilodalton (kDa).
IGHJ1, 2 kg; TTN, 3816 kg
I first experimented with mapping height to amino acid count, but that mapping covered too much dynamic range outside of usual human variation. Amino acid count and protein mass are in a linear relationship, but human weight scales with height squared.
For each gene, I picked the "mass" to match the mass of the top protein isoform when searching that gene in the Uniprot database. This is raw sequence-derived mass, which doesn't account for post-translational maturation steps. There can also be many alternative protein isoforms per gene, which I associate with multiple isoforms of the same character (think regular Goku vs Super Saiyan Goku).
Weight distribution histogram across genome
Character age → year of discovery, with 2020 as the zero point.
Gene named in the year 2000 becomes a 20 y.o. character.
MYMX, 3 y.o.; KEL, 63 y.o.
My first instinct was to map character age to gene evolutionary age. However, there's a lot of uncertainty with both data and measurement models of gene evolution. Definitional nitpicks can easily swing the gene age from being ancient to being very young. Plus that would make most characters into deep elders.
Mapping age to discovery year has bonus mnemonic benefits: the oldest-looking characters become the most "important" in terms of prominence. There are also very few characters who look under-18 but have a huge mass, sparing us from the "huge baby" problem somewhat.
Age distribution histogram across the genome
Fashion style → Pfam clan.
The style categorization I really like is Aestheticswiki: a wiki of around 1,000 pages devoted to various strains of historical fashion, subcultures, interior design, and web design. So my goal was to find a protein dataset that sorts most human proteins into 200-700 bins, 1-3 bins per protein, with similar genes getting into the same bin.
Pfam clan database sorts human proteins among 563 structural folds ("clans") like "Beta-propeller" and "Cystine-knot". Many genes get 0 Pfam clans, six genes get 7 Pfam clans simultaneously, but overall I'm quite happy with the dimensionality here.
What I'm still not quite happy with is the mapping itself. Turns out, mapping protein folds to fashion styles is some kind of a post-singularity problem. All LLM suggestions I got basically boiled down to "make a 500x800 table and score each square". I spent so much time trying out more principled approaches, playing around with matching Qwen3 embeddings of aesthetics to ESM embeddings of clans, up to looking at the Optimal Transport method and such. In the end, nothing beats just asking Claude to look through the pairings and reassign the badly matching ones in a loop.
My real stroke of luck was noticing that there's 9 peptidase Pfam clans and also 9 types of Goths on Aestheticswiki. Given what peptidases do to other proteins, this seemed like a no-brainer association. After assigning peptidases to Goths, I used this well-matching cluster as a template for Claude to find adjacent clans (in text embedding space) and pick a good adjacent aesthetic to map it to. It took a few months to really harmonize the picks, and many nights of just leaving Claude to click on dropdown pickers in the GUI, but overall the mapping turned out halfway decent.
Some examples of aesthetic mappings:
Three clans of glycosyltransferases - GT-A, GT-B, and GT-C - map to three Eastern European styles - Russian 2K17, Slavic Violence Tumblr and Gopnik.
Dark Academia maps to C2H2 zinc finger clan, Theatre Academia maps to RBP11-like, Art Academia maps to SHS2 - protein domains found inside the cell nucleus.
Chart of aesthetics across the genome
Fantastic feature → Gene symbol stem.
There are like a thousand different OR (olfactory receptor) genes: OR1A1, OR1A2, and so on all the way to OR52Z1. Sure, they all share a Dark Fantasy aesthetic mapped to the GPCR class A clan, but wouldn't it be nice to reserve memorable features specifically for shared-stem genes like OR? After all, we have to assign cool fantastic features somehow.
Some example features I picked:
Demon horns for IL genes (interleukins - inflammation regulators)
Metal hands for ZNF (Zinc finger) genes
Fox ears and tail for FOX genes
And for OR genes, pig nose. Sorry.
Character color → uhh
This one I struggled with the most.
The dimensionality of color is very weird. The perceptual colorspace is shaped like a bicone. More precisely, it can be somewhat approximated with a bicone.
What colorspace is actually shaped like is something twisted and unholy.
Avoid looking at colorspace for too long
My search for bicone-distributed molecular biology metrics came up empty. So I had to come up with individual gene metrics to map to color coordinates. I picked hue, saturation, and lightness as the most intuitive color components.
I mapped character lightness to gnomAD LOEUF.
This metric basically tells you how well tolerated mutations in this gene are, from 0.0 (intolerable, black) to 2.0 (tolerable, white).
In other words, a low LOEUF score indicates that evolution strongly selects against mutations in this gene: genes highly important for survival will be darker, redundant or miscellaneous genes will be lighter.
Lightness distribution across the genome
I mapped character color saturation to HPA Tau score.
Tau is a measure of gene expression specificity, ranging from 0 (ubiquitous, gray) to 1 (tissue-specific, saturated).
So a housekeeping gene expressed in the majority of cell types will be gray, and a cell-specific protein will have a vibrant color.
Saturation distribution across the genome
Color hue is different because it's an angular dimension, not a linear one. So the metric needs to be one that doesn't really have "low extreme" or "high extreme", or where the two extremes aren't that functionally different.
I chose to simply map the hue to the first letter of the gene symbol, mostly for mnemonic reasons (to ease the name recall given that you remember the color).
As a side benefit, genes that share the same name, like GENE1, GENE2, GENE3, keep somewhat similar colors, varying only in saturation and lightness but not hue.
Hue distribution across the genome
Keep in mind that in a bicone, getting too far up or down along the lightness axis restricts your variation along the saturation axis - so you won't get colorful blacks or whites, they'll just look black and white regardless of what hue and saturation you set.
So when you meet a character who's void black or laundry white in color, you will know their status of importance, but not their tissue specificity or first letter of their name. I think it's a reasonable trade-off.
To sum up, looking at a gene symbol pill in your browser, you will be able to deduce:
And if you remember the character's appearance but not their name, recalling their hue gives you a hint to their name.
Generating images
All the above character details, along with the gene function snippet, can be fed to the LLM to make an image prompt ("sample") for the gene.
Here's an example of what one sample looks like, for COASY, generated with Claude Opus 4.6:
These samples can be optionally processed into comma-separated tags for the image generators that don't accept huge blocks of text. Still, I think it preserves more than half of the designer's intent.
The samples have a tendency to mode collapse to a handful of generic props, such as vials and clocks, but overall they come out diverse enough for our use case, while being decently similar between similar genes, and reflecting the gene activity in a way that's not too literal.
Alright, maybe sometimes a bit too literal
Now that we have 19k text samples, we need to turn them into images. Which image generation service to use? My constraints were as follows:
Satisfying all three of those at once is not easy.
My personal map of image generation tools in 2026 looks like this:
Red border = paid services, green border = free local models
Nano Banana and ChatGPT image2 are at their most impressive when it comes to detail fidelity (number of fingers), complex prompt following, text accuracy, and multi-character images. However, all of their outputs kind of have this "default settings" feel. Once you've seen the tone mapping pattern, you can't unsee it, and all the outputs kind of end up looking tired. You can maybe get around it with one heavily tailored style prompt, but it will still end up blurring together if you reuse it for 19k images.
On the other hand, Midjourney still looks stunning in 2026 and has a very useful "sref code" system for seeding aesthetic variability. However, not only is it a paid service, it doesn't even offer API access - I would have to reserve my laptop purely for some kind of browser automation. I'll gladly collaborate with MJ if they offer me some kind of direct access, but for the first pass it will have to wait.
In the "free local imagegen" land, SDXL and Z-image are the two popular local models. I tried them. They're okay. Their LORA ecosystem does offer decent customization if you're willing to download each one manually, but I did find their extensibility too clunky for my taste.
What stuck with me was Anima. My goodness, how variable it is, and how much it changes the linework and composition just based on which artist names you add to the prompt. Beautiful. Does it generate an extra finger here and there? Perhaps. Does it mess up character color or prop shape? Yes, it happens. But it's a fair price for just how much effortless variability you get on a style level with a single pipeline. All of the gene images you see in this post were produced by a local anima-preview on my laptop without any style prompt changes except for the artist names.
Mnemonic harness
Images don't do any good just sitting in a gallery waiting for me to get into the memorizing mood. To build association via repetition, I had to see the images popping up at the same time as I saw an unfamiliar gene name.
So I made a browser extension.

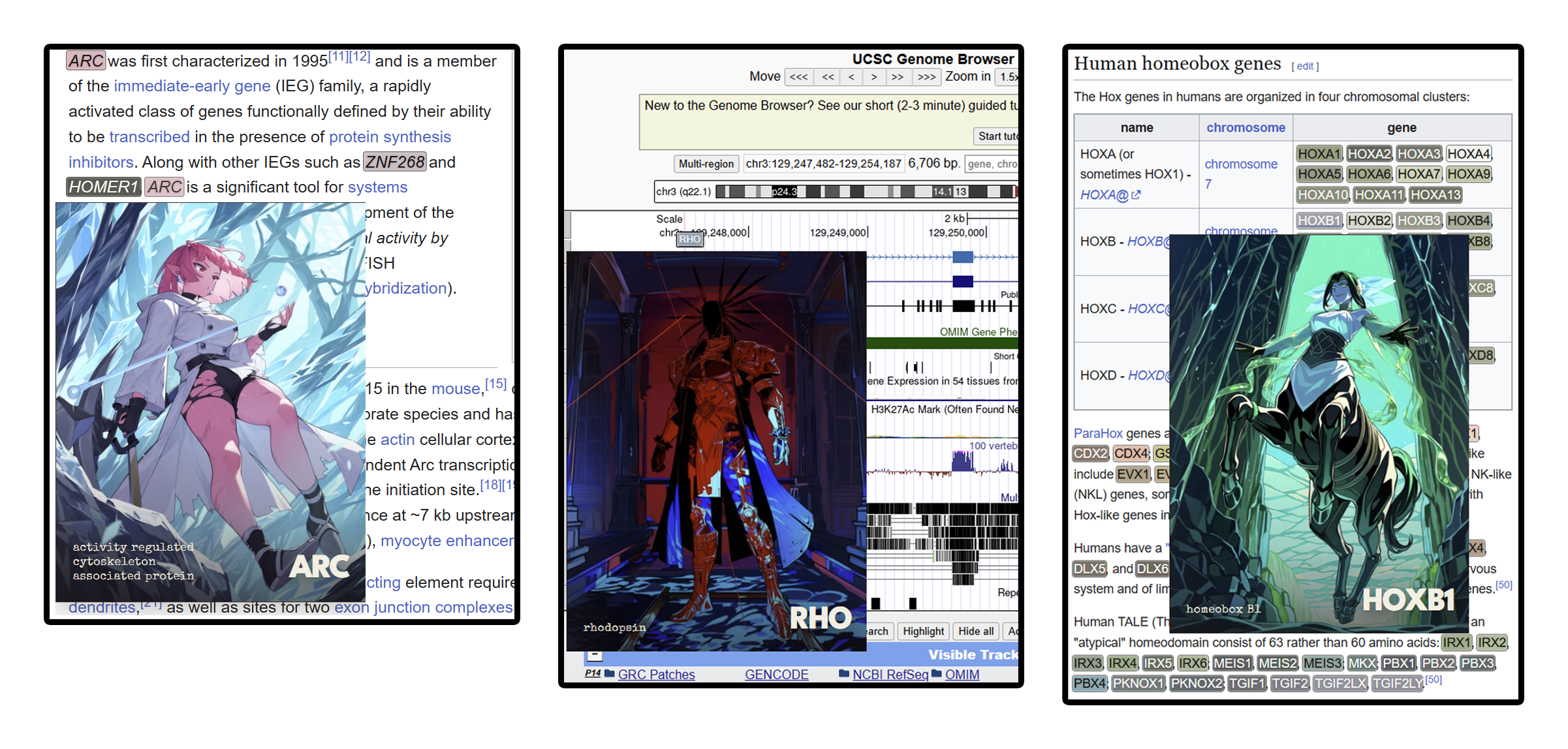

Iconoplasm is a browser extension that highlights all the gene names on any web page. When you hover your cursor over any human gene, it shows that gene as a character card.
Iconoplasm browser extension. Highlighted genes produce image pop-ups on hover.
You can one-click install the extension for Firefox or Edge browsers, or install it for other browsers using the manual instructions on the Iconoplasm website. It's also available on mobile Firefox.
The Iconoplasm website
iconoplasm.brinedew.bio frontpage. Don't mind the reverse synth.
It's basically a Pokedex system. Whatever genes you've hovered over get added into your archive gallery. You get three starter genes you probably already know, and if you want to check out more of them, you can see discoveries of others by clicking the checkbox near the discovery counter.
Clicking on a gene image transfers you to the gene's page. There you will find the gene card, as well as an interface for image generation, editing, transfer and voting.
Iconoplasm gene page for TP53 gene. Canonical gene card is at the top, alternative candidate blots are at the bottom.
There's currently no on-site functionality for users to change the gene's written sample. If you have suggestions on how a gene's sample can be improved, you're welcome to join the brinedew.bio Discord server and ping me (Brinedew) there.
What’s the legal status of the generated images?
Who knows! It’s 2026 and the status of generative content is murky and varies by jurisdiction. Regardless, my intent is for the images and the character designs to be freely available to anyone to reuse, spread, or profit from.
What about the artists whose names were used in the image gen pipeline?
Long-term, the plan is to switch to a Midjourney-like image gen provider, where style seeds are not tied to artists. Very optimistically, given enough funding, a fully human-drawn gallery can be arranged as a replacement.
Short-term, I have set up a blocklist request form where the artists whose names appear in the Anima database can request having their names blocked and the images removed from the live site.
What next?
Through a gene-character lens, many molecular scenarios supply us with great narrative templates, featuring struggle for power, chaos of incomplete information, rebellion against stifling tradition, and collective self-sacrifice.
Now that the Iconoplasm extension lets us see what genes look like, let's take a brief look at some mol bio pathways and try to identify the cast of key actors and their factions.
If you're a visual learner, hopefully this type of presentation makes molecular biology more memorable than a traditional mechanism diagram. And if you think you can pull off any of these conflicts as a short story, I'd love to read it.
Limitations
Not all 19k proteins had good data to run with, especially when it comes to Pfam clans and aesthetics.
The "politics" field is experimental, tracking oncogenes vs. tumor suppressors
Where the data was lacking, I let the LLM be more creative with interpretation from gene name and gene function.
The gene comparison images were somewhat cherry-picked - it took me about 30 minutes per comparison to find good representatives. I expect the images to become better matched to their isomorphism if the Iconoplasm canonical picks can be progressively refined by the gene fandom.
If we don't count that episode where SEPT1 and MARCH1 got renamed by geneticists because Microsoft Excel formatting kept misreading them as dates.
