One of my goals in adding electronic
"harp strings" to my mandolin is that I don't want to change
anything about my normal mandolin technique when I'm not using them.
I've been playing for decades, and like how I normally play. This
means I can't place these "teeth" anywhere my hands normally pass

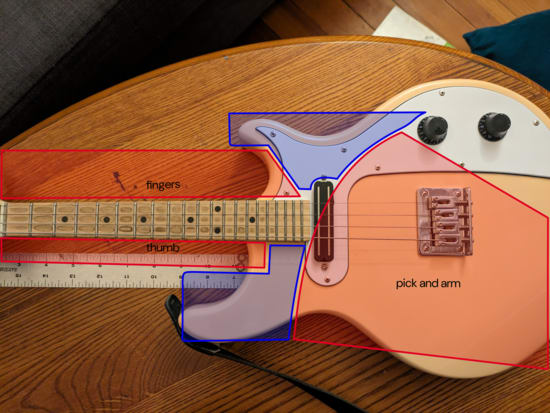

through. With a bit of testing, I think these are the available
areas:
I don't normally pluck the strings that close to the fretboard, but
after some experimenting I realized that I do sometimes when I want a
different sound, so I need to keep that whole area open.
Since I think I want to be able to pluck a tooth on the downbeat and
then strum on the upbeat, the area above the neck sounds like a better

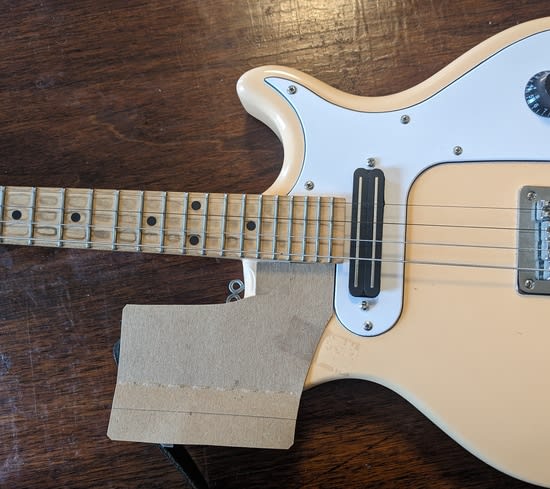

choice than below. I made a cardboard template so I could get a sense
of whether this got in my way when I was playing:

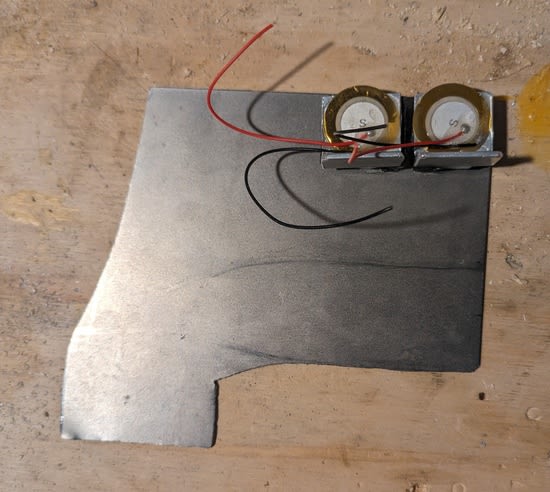

It felt good, so I used my jigsaw to transfer the outline to the piece
of 22ga (1/32") steel I'd attached my first two teeth to:

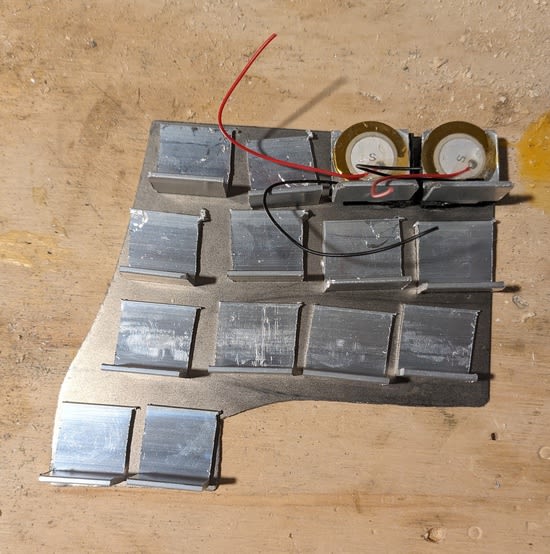

I cut a bunch more sections off the aluminum offset angle I used
before, and laid them out in a potential layout. FYI this isn't the
layout I ended up choosing:

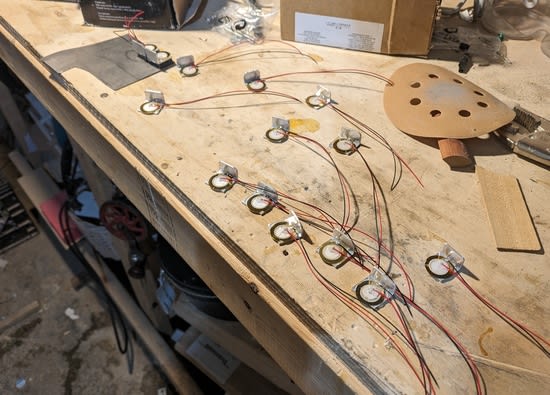

These are all still pretty rough, so I filed off the burrs and rounded
the corners. Then I epoxied on the piezos and went to bed:

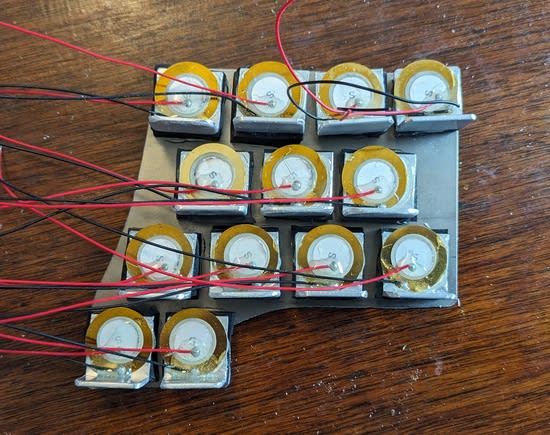

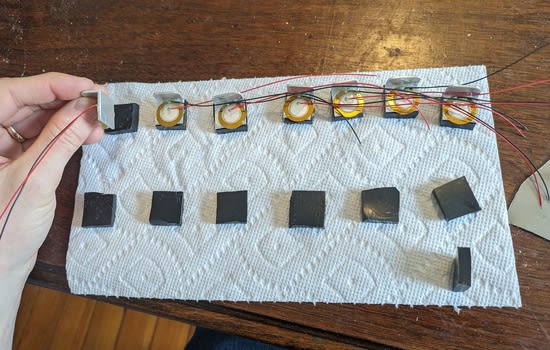

Today I cut out pieces of sorbothane and glued the teeth to the tops:
I decided to go with an offset layout, and will probably map it as Wicki–Hayden
(with the up stroke a half step below the down stroke). I glued the
teeth to the backing:
I taped the backing to my mandolin, and played with my normal
technique for a while to ensure it felt ok. No issues!
Next comes picking out a microcontroller, sorting out the circuits if
I can't just go in direct, and a ton of wiring. [1] Then software to
interpret the signals and generate MIDI, and integrating it into my
existing system. Then learning how to play it!
[1] I haven't figured out my wire routing yet. Possibly I'll use a
drill press to make a bunch of tiny holes, one next to each tooth, and
do all the routing on the back? Though deburring the tiny holes on a
sheet I've already glued the teeth to sounds annoying.
